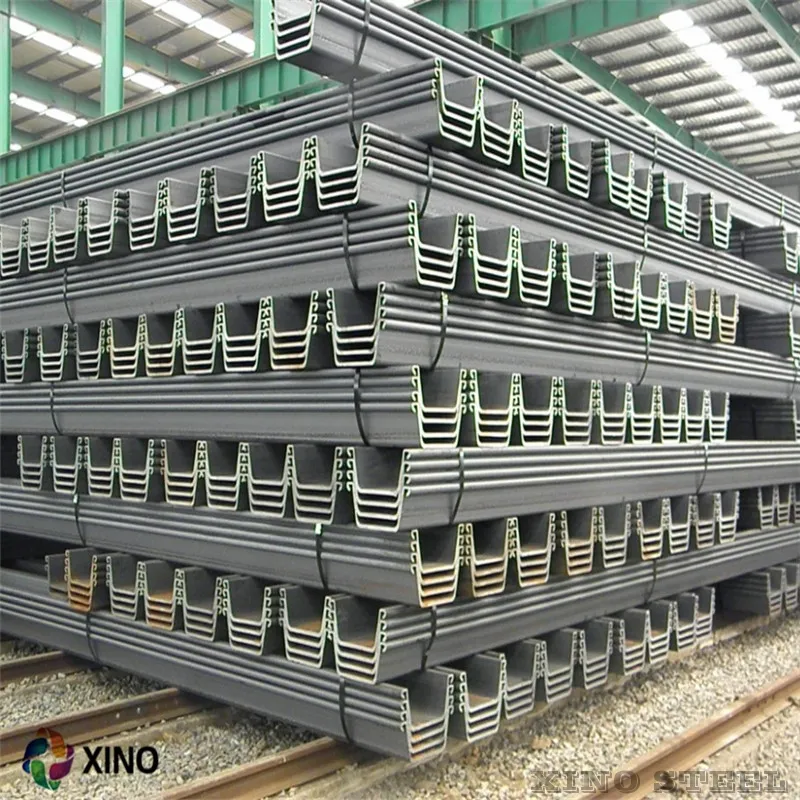

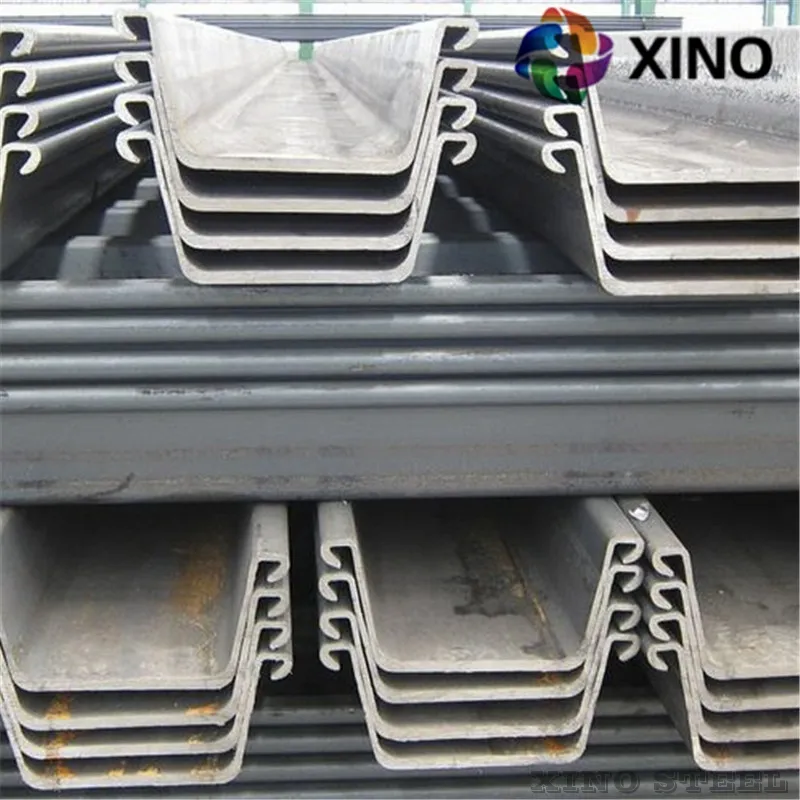

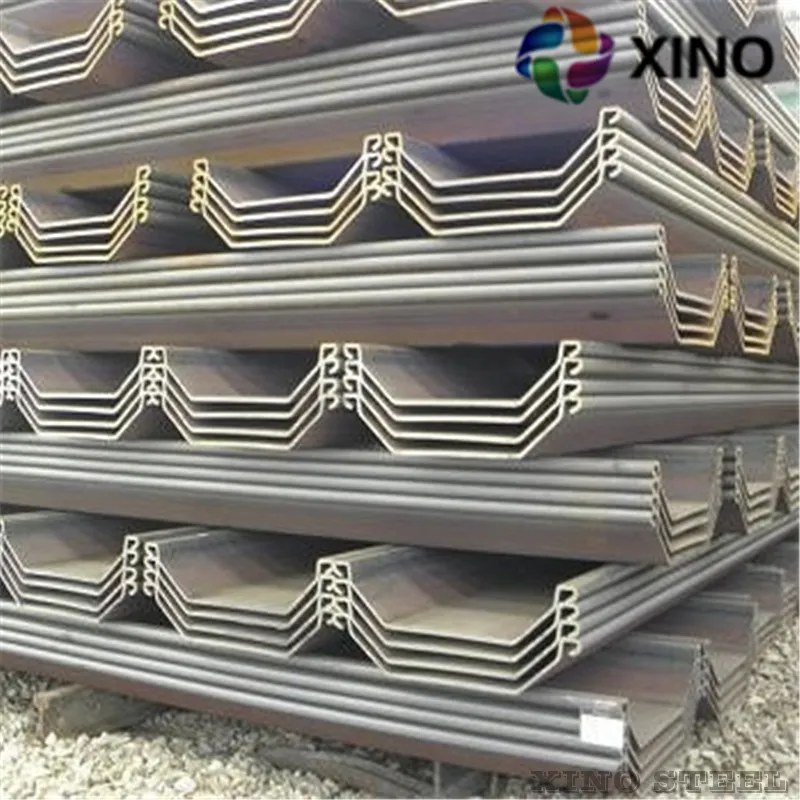

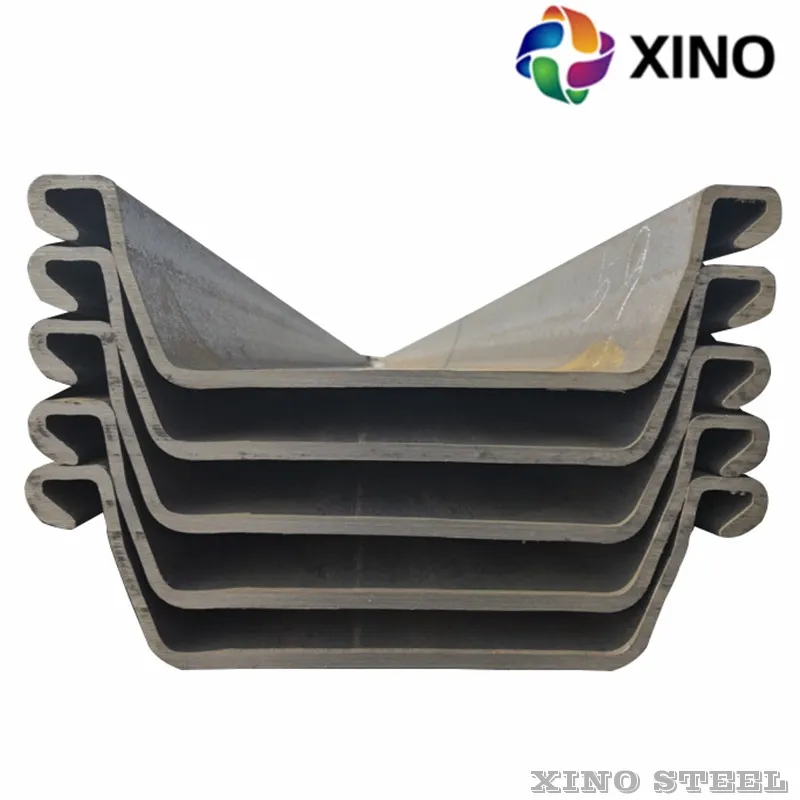

U type Z type steel piles,NSP FSP JFESP FSP 3 steel sheet pile FSP 3 type III sheet pile
| APPLICATION | Cofferdam,retaining walls,car parking,bulkheads,Land reclamation,Dock jetty,Dewatering,quay wall,road,Bridge piers abutment,canals,excavation |
| STANDARD | EN10248,JIS A 5523 JIS A 5528,ASTM A328 / ASTM A328MJIS G3321, ASTM A792M / A924M equivalent |
| STEEL GRADE | Q355B KW420 NSP FSP JFESP 2w 4w 5l 6l IIW IVW VIL VL sheet pile,S275,S355,S390,S430,SY295,SY390,SYW295,SYW390 |
| MILLS | SP,JFE,JFESP,FSP (Nippon Fuji),GSP(Corus),ISP(INISTEEL),JSP(Arbed) |
| MANUFACTURER | KSP(Kawasaki),NKSP(NKBS),SKSP(Sumitomo),NS-SP,TSP(Tokyo steel) ,JINXI,AM |
| INTERLOCK TYPE | Larssen locks,cold rolled interlock,hot rolled interlock |
| OTHER NAME | Cold rolled / cold formed U / Z/ Omega type steel piles,hot rolled U /Z Type steel piles |
| LENGTH | single length up to over 100m |
| SIZE | b | h | Thickness | Sectional Area | Weight | rotational inertia Ix | Elastic section | static moment | Modulus of plastic section | ||
| mm | mm | cm2 | cm4 | Wx | cm3/m | cm3/m | |||||
| t | s | meter | linear meter | cm3/m | |||||||
| mm | mm | kg/m | kg/m2 | ||||||||
| AZ12-770 | 770 | 344 | 8.5 | 8.5 | 120 | 72.6 | 94 | 21430 | 1245 | 740 | 1480 |
| AZ13-770 | 770 | 344 | 9 | 9 | 126 | 76.1 | 99 | 22360 | 1300 | 775 | 1546 |
| AZ14-770 | 770 | 345 | 9.5 | 9.5 | 132 | 79.5 | 103 | 23300 | 1355 | 805 | 1611 |
| AZ14-770-10/10 | 770 | 345 | 10 | 10 | 137 | 82.9 | 108 | 24240 | 1405 | 840 | 1677 |
| AZ12-700 | 700 | 314 | 805 | 805 | 123 | 67.7 | 97 | 18880 | 1205 | 710 | 1415 |
| AZ13-700 | 700 | 315 | 9.5 | 9.5 | 135 | 74 | 106 | 20540 | 1305 | 770 | 1540 |
| AZ13-700-10/10 | 700 | 316 | 10 | 10 | 140 | 77.2 | 110 | 21370 | 1355 | 800 | 1600 |
| AZ14-700 | 700 | 316 | 10.5 | 10.5 | 146 | 80.3 | 115 | 22190 | 1405 | 835 | 1665 |
| AZ17-700 | 700 | 420 | 8.5 | 8.5 | 133 | 73.1 | 104 | 36230 | 1730 | 1015 | 2027 |
| AZ18-700 | 700 | 420 | 9 | 9 | 139 | 76.5 | 109 | 37800 | 1800 | 1060 | 2116 |
| AZ19-700 | 700 | 421 | 9.5 | 9.5 | 146 | 80 | 114 | 39380 | 1870 | 1105 | 2206 |
| AZ20-700 | 700 | 421 | 10 | 10 | 152 | 83.5 | 119 | 40960 | 1945 | 1150 | 2296 |
| AZ24-700 | 700 | 459 | 11.2 | 11.2 | 174 | 95.7 | 137 | 55820 | 2430 | 1435 | 2867 |
| AZ26-700 | 700 | 460 | 12.2 | 12.2 | 187 | 102.9 | 147 | 59720 | 2600 | 1535 | 3070 |
| AZ28-700 | 700 | 461 | 13.2 | 13.2 | 200 | 110 | 157 | 63620 | 2760 | 1635 | 3273 |
| AZ24-700N | 700 | 459 | 12.5 | 9 | 163 | 89.7 | 128 | 55890 | 2435 | 1405 | 2810 |
| AZ26-700N | 700 | 460 | 13.5 | 10 | 176 | 96.6 | 138 | 59790 | 2600 | 1510 | 3015 |
| AZ28-700N | 700 | 461 | 14.5 | 11 | 1889 | 104.1 | 149 | 63700 | 2765 | 1610 | 3220 |
| AZ36-700N | 700 | 499 | 15 | 11.2 | 216 | 118.6 | 169 | 89610 | 3590 | 2055 | 4110 |
| AZ38-700N | 700 | 500 | 16 | 12.2 | 230 | 126.4 | 181 | 94840 | 3795 | 2180 | 4360 |
| AZ40-700N | 700 | 501 | 17 | 13.2 | 244 | 134.2 | 192 | 100080 | 3995 | 2305 | 4605 |
| AZ42-700N | 700 | 499 | 18 | 14 | 259 | 142.1 | 203 | 104930 | 4205 | 2425 | 4855 |
| AZ44-700N | 700 | 500 | 19 | 15 | 273 | 149.9 | 214 | 110150 | 4405 | 2550 | 5105 |
| AZ46-700N | 700 | 501 | 20 | 16 | 287 | 157.7 | 225 | 115370 | 4605 | 2675 | 5350 |
| AZ18 | 630 | 380 | 9.5 | 9.5 | 150 | 74.4 | 118 | 34200 | 1800 | 1050 | 21041 |
| AZ18-10/10 | 630 | 381 | 10 | 10 | 157 | 77.8 | 123 | 35540 | 1870 | 1095 | 2189 |
| AZ26 | 630 | 427 | 13 | 12.2 | 198 | 97.8 | 155 | 55510 | 2600 | 1530 | 3059 |
| AZ46 | 580 | 481 | 18 | 14 | 291 | 132.6 | 229 | 110450 | 4595 | 2650 | 5295 |
| AZ48 | 580 | 482 | 19 | 15 | 307 | 139.6 | 240 | 115670 | 4800 | 2775 | 5553 |
| AZ50 | 580 | 483 | 20 | 16 | 322 | 146.7 | 253 | 121060 | 5015 | 2910 | |
