Before laoding the machine in the container, we clean the machine first cover with a film.
fix the machine stable tighty by Steel wire rope in the container, thus, for the machine safe, no moving.
This machine takes GI/PPGI as raw material, through a series steps can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
1 | material of input sheet | aluminium/Galvanized steel/ colored steel |
2 | feeding width | 1250mm |
3 | effective width | 1050mm |
4 | material thickness | 0.3-0.8mm |
5 | main motor power | 3kw |
6 | hydraulic pump power | 3kw |
7 | forming step | 13 steps |
8 | diameter of shaft | 70mm |
9 | main frame | 350H steel |
10 | roller material | 45# steel with chrome |
11 | cutting knives material | Cr12 |
12 | control system | PLC control system with inverter |
13 | working speed | 8-12m/min |
14 | machine size | 5.8*1.3*1.3m |
15 | machine weight | about 2.5 tons |
16 | voltage | 220v, 3phase, 60hz |
Before laoding the machine in the container, we clean the machine first cover with a film.
fix the machine stable tighty by Steel wire rope in the container, thus, for the machine safe, no moving.

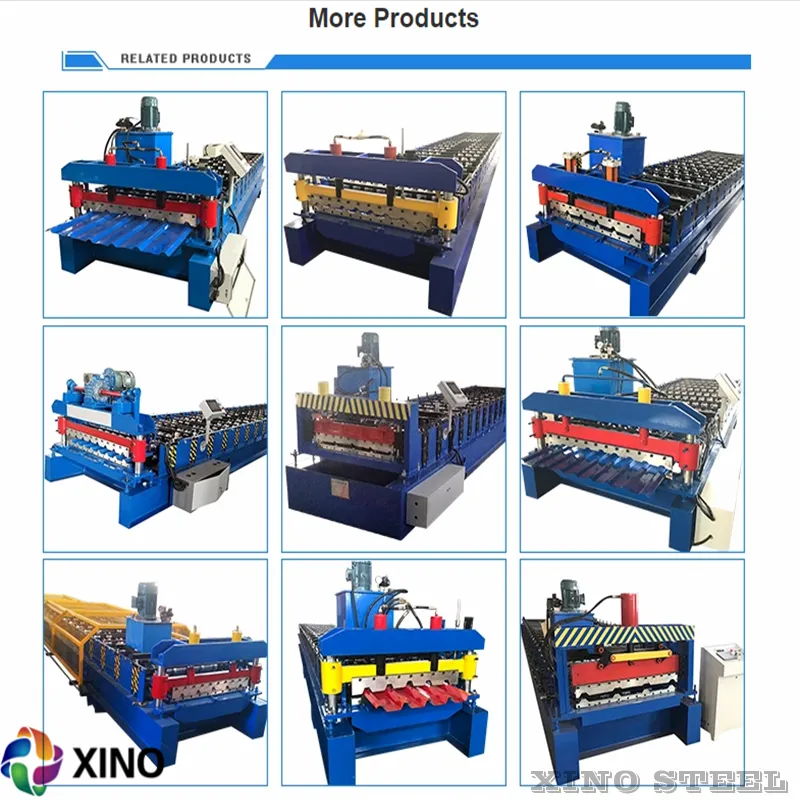

RELATED
