In the realm of metal corrosion protection for steel substrates, hot-dip metallic coatings stand as the most cost-effective and widely applied solution. Among the various coating technologies available, conventional hot-dip galvanized (GI), aluminum-zinc alloy coated (Galvalume/GL), and the advanced zinc-aluminum-magnesium (Zn-Al-Mg/ZAM) coated steel coils represent three pivotal generations of development. This article systematically compares their corrosion resistance mechanisms, performance metrics, practical efficiencies, and application scenarios, providing a technical reference for material selection.
The fundamental difference in corrosion performance originates from the chemical composition and the resulting protective mechanisms of each coating.
· Composition: Primarily pure zinc (Zn ≥ 99.9%), with trace amounts of aluminum (≈0.2%) added to improve fluidity.
· Corrosion Protection Mechanism:
Sacrificial Anode Protection: Zinc, having a more negative electrochemical potential (-0.76V) than iron (-0.44V), acts as the anode and corrodes preferentially, galvanically protecting the underlying steel substrate.
Physical Barrier: The solid zinc layer and its corrosion products (primarily zinc oxide and basic zinc carbonate) form a physical barrier to block moisture and oxygen.
· Limitation: The barrier layer is relatively porous and less stable. Once the zinc is consumed, particularly at cut edges or scratches, corrosion spreads rapidly.
· Composition: A ternary alloy typically consisting of 55% aluminum, 43.4% zinc, and 1.6% silicon.
· Corrosion Protection Mechanism:
Dual Protection System:
1. Barrier Protection (Aluminum): Aluminum rapidly forms a dense, inert aluminum oxide (Al₂O₃) film that is highly resistant to permeation by corrosive media.
2. Sacrificial Protection (Zinc): The zinc component provides cathodic protection to the steel if the coating is breached.
Synergistic Effect: The high aluminum content offers excellent resistance to atmospheric and acidic corrosion, while silicon prevents excessive formation of brittle intermetallic layers.
· Limitation: Poor alkaline resistance. The protective effect on cut edges is weak, as the aluminum oxide film inhibits the lateral flow of zinc for edge protection.
· Composition: A ternary alloy, with mainstream formulations being ≈84.5-91% Zn, 5-6% Al, and 3% Mg. High-magnesium variants (5-6% Mg) are also available for extreme environments.
· Corrosion Protection Mechanism:
Triple Protection System:
1. Sacrificial Cathodic Protection (Zn): Standard zinc-based galvanic protection.
2. Stable Barrier (Al): Formation of a dense aluminum oxide layer.
3. Self-Healing & Dense Passivation (Mg): The key innovation. Magnesium ions (Mg²⁺) released during corrosion react to form magnesium hydroxide (Mg(OH)₂) and a stable, adherent Zn-Al-Mg hydroxycarbonate film. This film is exceptionally dense, low in conductivity, and acts as a powerful inhibitor to further corrosion.
Self-Repair Capability: Unique to ZAM. At scratches, cut edges, or exposed surfaces, the dissolved Mg and Al components migrate to the defect and rapidly precipitate to form a protective film, sealing the damage and stopping corrosion propagation.

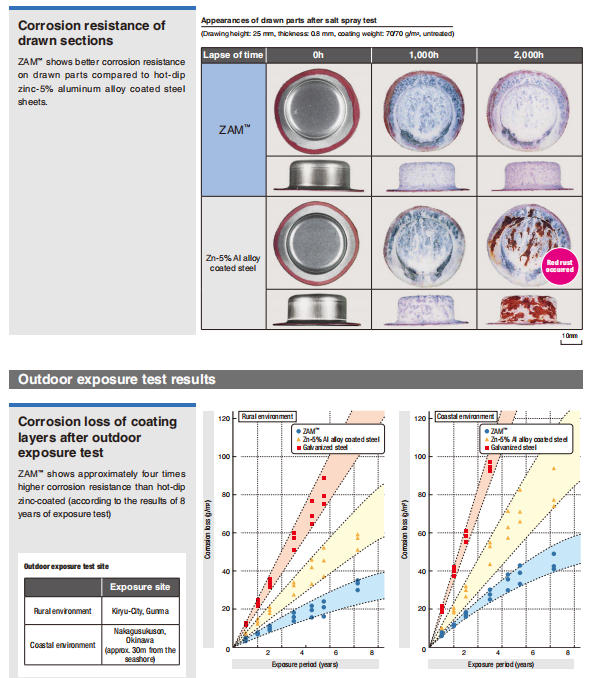

Laboratory tests and field applications consistently validate the performance hierarchy: Zn-Al-Mg > Galvalume > Galvanized.
The salt spray test is the primary accelerated corrosion evaluation method. The data below represents the time to first occurrence of red rust (indicating steel substrate corrosion) for coatings of similar thickness (≈50-100 g/m²):
Tabel
Coating Type | Time to First Red Rust | Corrosion Resistance Multiplier (vs. GI) |
Galvanized (GI) | 500 – 1,500 hours | 1.0 (Baseline) |
Galvalume (GL) | 2,000 – 3,000 hours | 2 – 6 times |
Zn-Al-Mg (ZAM, 3% Mg) | 5,000 – 8,000 hours | 5 – 10 times |
Zn-Al-Mg (High Mg, 6%) | > 8,000 hours | 10 – 20 times |

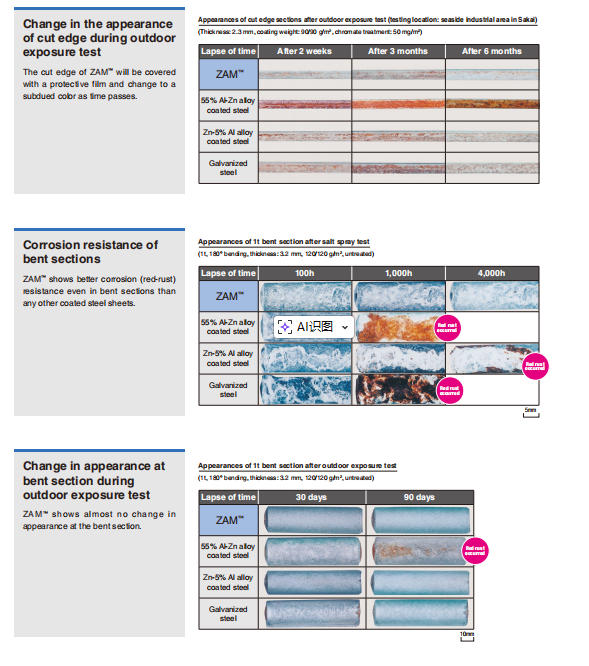

A critical real-world performance indicator is the ability to protect exposed steel edges after fabrication.
· Galvanized (GI): Poor. Zinc is quickly consumed at edges, leading to rapid 'red rust' formation and lateral spread.
· Galvalume (GL): Moderate. The aluminum oxide layer hinders zinc flow, offering limited edge protection. Prone to edge corrosion in harsh environments.
· Zn-Al-Mg (ZAM): Excellent. The self-healing effect forms a dense, protective film directly on the cut edge, providing near-complete protection. This eliminates the need for edge touch-up painting in many applications.
· Galvanized (GI): Suitable for dry, low-corrosivity environments (e.g., inland, rural areas). Performs poorly in high-humidity, marine (salt), or industrial (acid rain) environments.
· Galvalume (GL): Excels in general industrial and high-temperature environments (up to 315°C). Good resistance to heat and acid, but weak in alkaline conditions.
· Zn-Al-Mg (ZAM): The most versatile. Performs exceptionally well in high-corrosion environments including marine/coastal zones, industrial areas with heavy pollution, high-humidity climates, and chemically aggressive settings. It demonstrates sUPErior resistance to both acid and alkali.
Beyond pure corrosion resistance, overall efficiency encompasses cost-effectiveness, durability, and processing benefits.
· Galvanized (GI): Service life of 10-25 years in normal environments. Requires regular maintenance and repainting in harsh conditions.
· Galvalume (GL): Service life of 25-50 years, 2-6 times longer than GI in comparable environments. Reduces maintenance frequency.
· Zn-Al-Mg (ZAM): Service life of 50+ years in harsh environments, 3-5 times longer than GI. Its self-repair capability enables long-term, low-maintenance or maintenance-free operation, significantly lowering lifecycle costs.
· Thinner Coating, Higher Performance: ZAM achieves equivalent or superior protection with a thinner coating compared to GI and GL. For the same level of corrosion resistance, ZAM can reduce coating thickness by 30-50%, saving on raw material costs and weight.
· Processing Tolerance: ZAM exhibits better ductility and formability. It is less prone to coating cracking during bending or stamping compared to GL.
· Weldability: All three are weldable, but GI generally has the easiest weldability. ZAM offers good weldability with optimized parameters, while GL can be more difficult due to high aluminum content.
· Galvanized (GI): Lowest upfront material cost. Most cost-effective for short-to-medium term applications in mild environments.
· Galvalume (GL): Moderate upfront cost. Excellent value for medium-to-long term applications in standard industrial or warm environments.
· Zn-Al-Mg (ZAM): Higher upfront material cost. However, its superior longevity and minimal maintenance deliver the lowest total cost of ownership (TCO) for long-term investments or projects in high-corrosion zones.
The evolution from galvanized to galvalume and finally to zinc-aluminum-magnesium represents a significant leap in anti-corrosion technology, driven by the synergistic effects of alloying elements, particularly magnesium.
· Choose Galvanized (GI) when: The project budget is highly constrained, the service environment is mild (dry, inland), and a shorter lifespan with regular maintenance is acceptable.
· Choose Galvalume (GL) when: The application involves high-temperature exposure or requires good resistance to industrial atmospheres, and cost is a key consideration.
· Choose Zn-Al-Mg (ZAM) when: The project is located in marine, coastal, or highly corrosive industrial environments, demands an extended service life, requires excellent edge protection without post-fabrication painting, or aims for minimal long-term maintenance. It is the optimal choice for critical infrastructure, photovoltaic supports, building exteriors, and high-value steel structures where long-term reliability is paramount.
In summary, Zn-Al-Mg coated steel, with its unparalleled corrosion resistance, unique self-healing property, and superior comprehensive efficiency, is rapidly becoming the preferred material for modern anti-corrosion engineering, marking a new standard in the performance of metallic coated steels.
